LTL Freight Carriers


This guide goes through how to set up LTL (Less than Truckload) Freight carriers, which are used to ship goods which cannot go via small package.  We support US and Australian LTL carriers at this time.

Adding LTL Freight

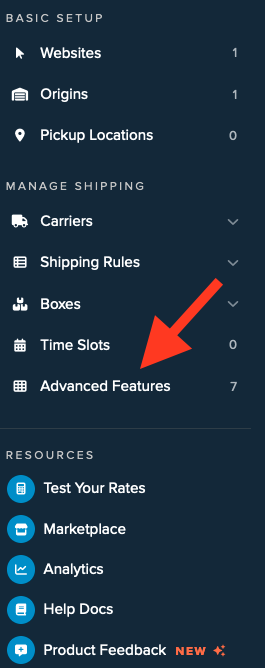

Once you’ve enabled the LTL Freight Advanced Feature, a LTL carrier is setup in the standard way of other carriers, via the Marketplace or through the ‘Carriers’ tab.

After installing a Carrier, you are left to specify the LTL specific settings as required, and also any carrier specific settings. This article discusses the LTL specific settings, and gives links to any carriers which have additional settings required.

When is LTL Freight Displayed?

There are a few criteria under which LTL is displayed in checkout:

    • If the minimum weight threshold is set. (e.g. if you have this set to 150lbs whenever there is >= 150lbs in the cart LTL shows)
    • When an item in the cart is marked at a product level to only ship freight (Magento only)
  • When an item in the cart is in a shipping group that says only ship freight (BigCommerce only)

When LTL is triggered by default it will hide all other carriers.  The principle here is that we assume you will ship all goods via LTL in this scenario.

Show Small Package Carriers with Freight

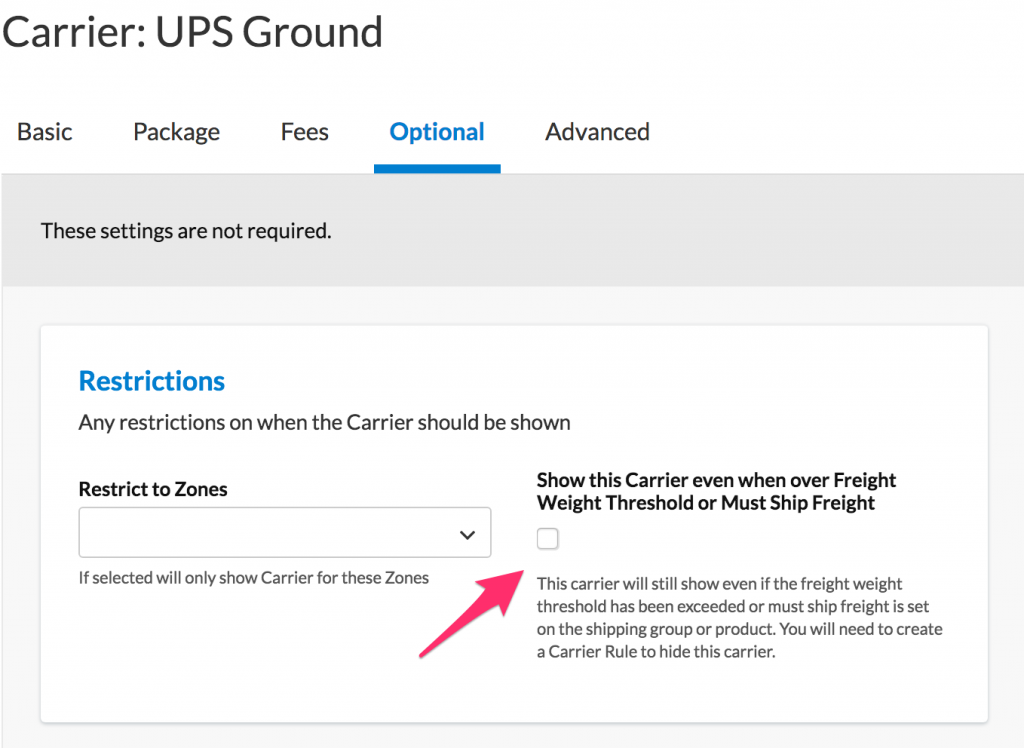

It may be though that you still want to show a carrier (e.g. Store Pickup, or UPS) even when LTL is showing. You can do this by selecting those Carriers to display even when Freight is triggered.

This setting is under the Optional panel of the Carrier you want to show (see screenshot).

Freight Settings

Under Freight Settings the following fields are useful to review:

Freight Settings Panel
Field Name Description Example Required?
Default Freight Class This Freight Class will be used for all products which don’t have a Freight Class set on the product in your eCommerce platform. 55 Y
Minimum Weight Threshold The minimum weight at which this carrier will be displayed. 150 Y
Generic Carrier Method If you enter a value here, it will be shown on checkout instead of the carrier’s name

Note May be shown to customers on checkout.
LTL Freight N

In some 3PL carriers (e.g. Kuehne+Nagel LTL) where rates from multiple LTL carriers are returned you have the option of autoselecting the cheapest rate.  This will take the cheapest from the shipping methods you have selected for that carrier.


Accessorials for LTL Freight are used for charging special delivery options such as Liftgate, Inside Delivery, Scheduled Appointment, etc. Accessorials are supported for Live Rate LTL Freight and Table Rate Carriers.

Note:If you are on Magento 2.x.x and trying to set up Freight Carriers with any Accessorial options, you will need to email and ask for access to private satis repository and we will reply with credentials and steps to install module-options which allows the display of accessorial options and custom error messages.

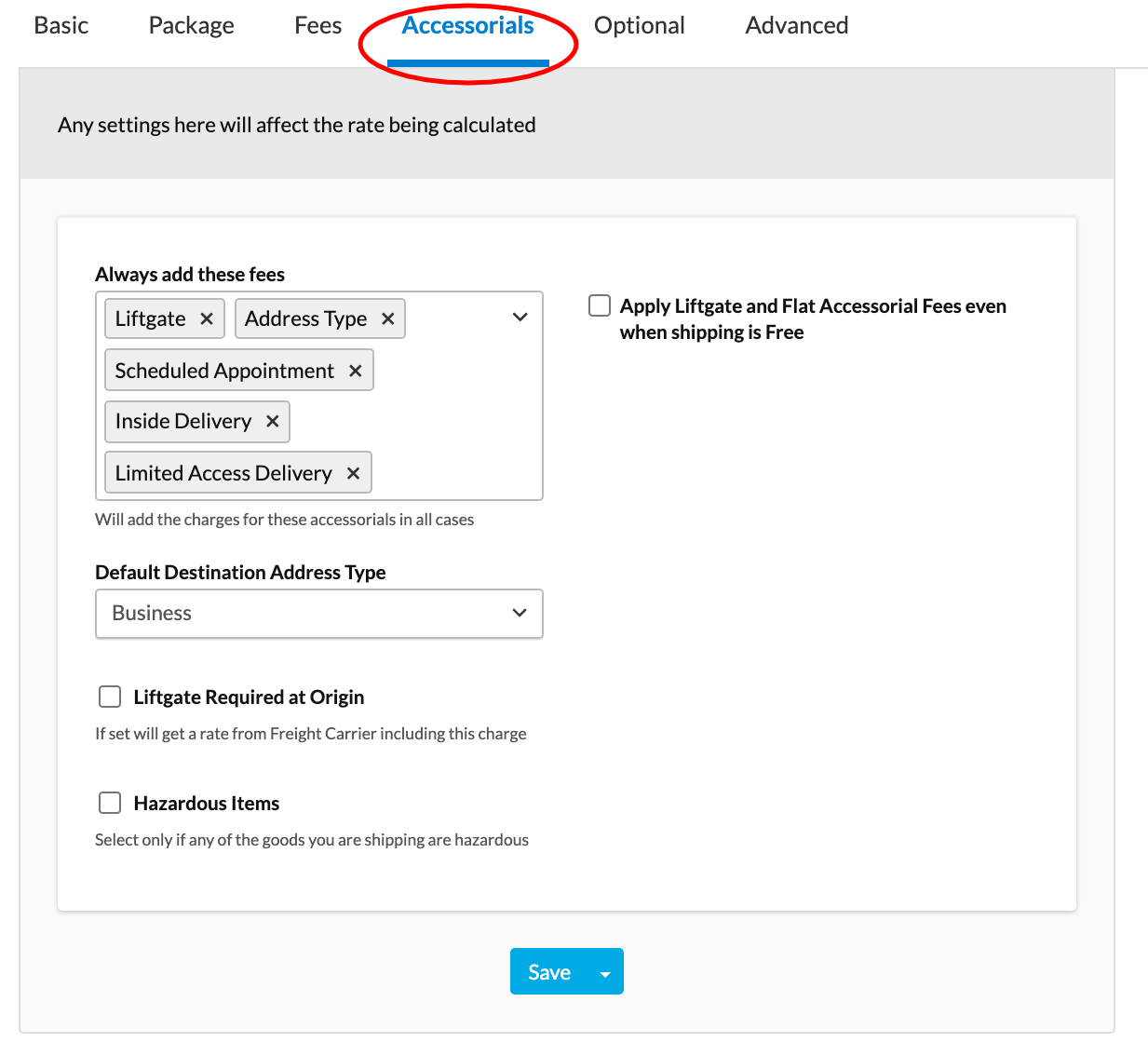

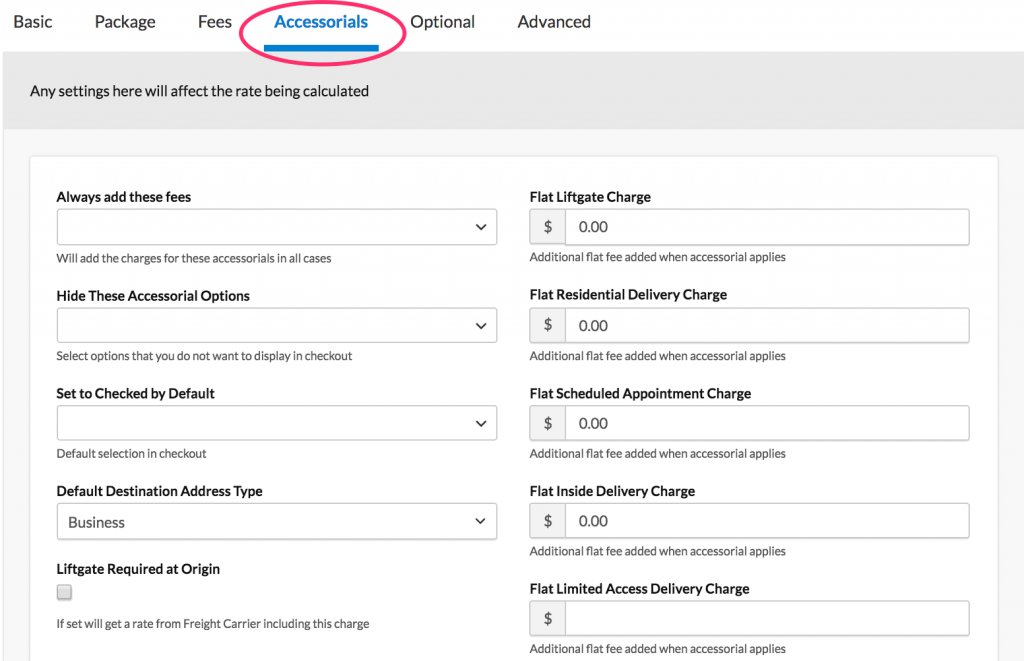

Under the Accessorials Panel on LTL Freight Carriers you have options around when to show accessorials, when to apply accessorial fees, and the defaults to use.

You can hide/display different accessorials on the checkout, such as offer customer choice to select liftgate.  You can also, for example, set the default address type to residential if you know that most of your business is to that sector so that the correct fees are displayed by default.

An additional flat fee per accessorial can be added in the right-hand column.

Accessorial Charges are different from Shipping Rule surcharges as they cannot be overridden or altered by Rules. If you intend to offer discounted rates for this method, please ensure that you take these accessorial fees into consideration.


Note: Custom charges per accessorial (as pictured above) are only available on Pro and Enterprise ShipperHQ plans. At this time, this feature is not supported by BigCommerce.

Freight Classes

ShipperHQ does not trigger freight classes by size and weight. Criteria specific to each merchant and the products that they sell will be used to determine which freight class ShipperHQ will send in the freight rate request. Freight classes can be assigned to all items separately or they can be applied to groups of products by following the instructions in this article for how to Set Freight Classes Using Shipping Groups.

If you assign freight classes by product and there are multiple items in the cart that will be combined into one freight order, ShipperHQ will use the highest of the classes to rate each package. Otherwise, the default freight class set on the carrier itself will be used.

If most of your items ship with the same freight class you can set that class as the default on your freight carrier and create shipping groups for products that required other classes. By following the setup instructions in the Set Freight Classes Using Shipping Groups doc, you will be able to specify that when any items from these groups are present in the cart to use the class set on that shipping group instead.

Warning: Magento users will need to mark products at the product level if they must ship freight.

Configuration Options for Specific Carriers

Carrier Description Link
TForce Freight Connect to a TForce Freight (formerly UPS Freight) account and retrieve rates via the TForce Freight API. TForce Freight Carrier Configuration
FedEx Freight Connect to a FedEx Freight account and retrieve rates via the Fedex Freight API. FedEx Freight Carrier Configuration
Estes Freight Connect to a Estes Freight account and retrieve rates via the Estes Freight API. Estes Freight Carrier Configuration
ABF Freight Connect to a ABF Freight account and retrieve rates via the ABF Freight API. ABF Freight Carrier Configuration
YRC Freight Connect to a YRC Freight account and retrieve rates via the YRC Freight API. YRC Freight Carrier Configuration
XPO Freight Connect to a XPO Freight account and retrieve rates via the XPO Freight API. XPO Freight Carrier Configuration
R+L Freight Connect to a R+L Freight account and retrieve rates via the R+L Freight API. R+L Freight Carrier Configuration
Old Dominion Freight Connect to a Old Dominion Freight account and retrieve rates via the Old Dominion Freight API. Old Dominion Freight Carrier Configuration
Echo Global Freight Connect to a Echo Global Freight account and retrieve rates via the Echo Global API. Echo Global Freight Carrier Configuration
Kuehne+Nagel LTL eCommerce (ReTrans Freight) Connect to an account and retrieve rates via the Kuehne+Nagel API. Kuehne+Nagel LTL Carrier Configuration
Vitran Express Freight Connect to a Vitran Express Freight account and retrieve rates via the Vitran Express Freight API. Vitran Express Freight Carrier Configuration
Saia LTL Freight Connect to a Saia LTL Freight account and retrieve rates via the Saia LTL Freight API. Saia LTL Freight Carrier Configuration
Test Your Rates

Verify that your carriers and rules are working and see how they will display in your checkout right from the ShipperHQ dashboard.
